Do you want to know more technical data of the Gateway BDG-256?
Globalmente certificados

UL 60950-12a edition Rev. 19-12-2011

NEMA 1 protective class

Icono pantalla lcd-gateway

7 inch touch LCD screen

International certificates

Globally certified for UL 60950-1 2a edition Rev December 19, 2011 CSA C22.2 2a edition December19, 2011 FCC Part 15 class B AS / NZS.

Simple and practical design

Dimensions: 6.69” x 4.33” x 1.46” Weight 5.29 oz. Operating temperature de -40˚C to +55˚C (-40˚ to 131˚F) Natural convection cooling system.

Simple installation

Very simple installation with built-in cables and connectors.

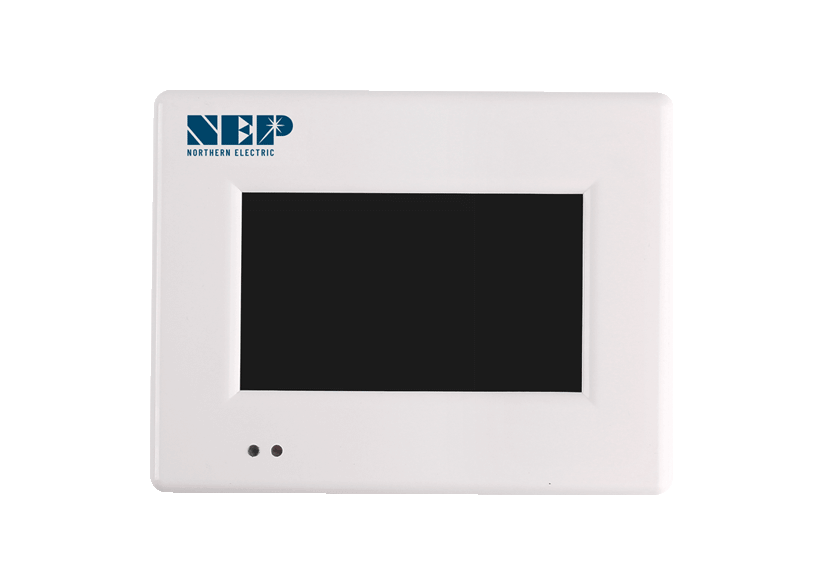

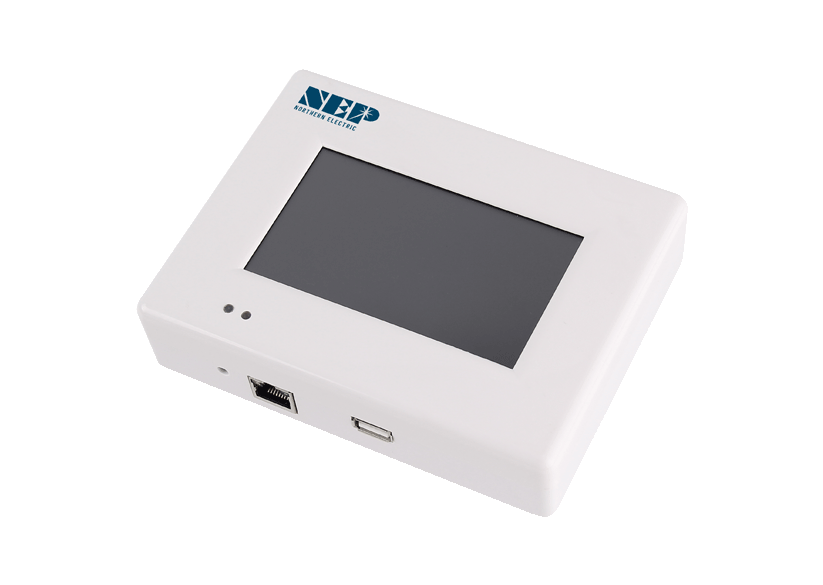

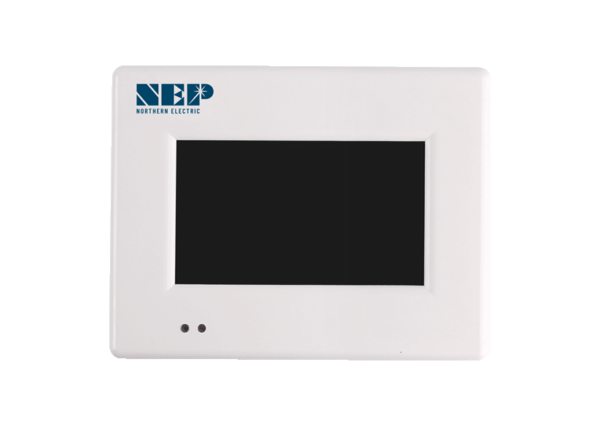

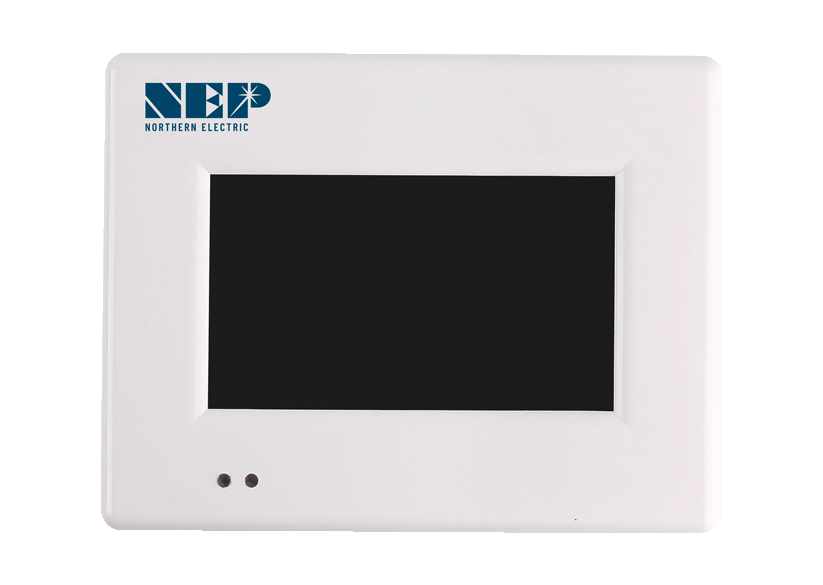

Gateway BDG-256

The Gateway BDG-256 has a 10-year warranty and with them you save money on your electricity bill and contribute to a cleaner future.

Dimensions: 6.69” x 4.33” x 1.46”​

Weight:  529 oz

ModelBDG-256
Communication interface
Communication with the microinverterAC power line communication
Communication with RSDDC power line

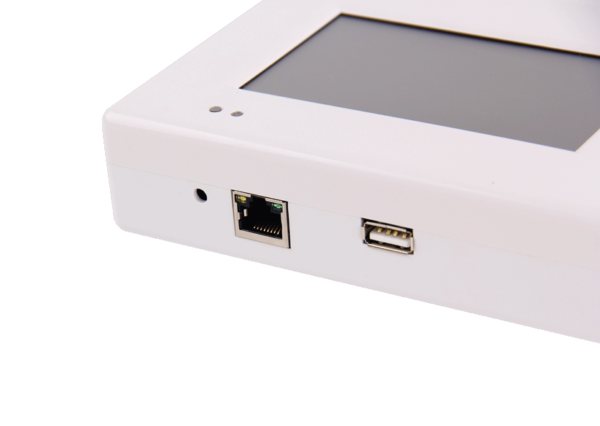

Ethernet10/100 Auto Detect, Auto Negotiation
USBUSB 2.0 interface, auto-detection, auto-negotiation
Monitoring capacity255 microinverters or RSD
Human interface
Display7-in LCD touch screen
Power supply requirement
Alternating current supplyThree-phase 208-380 VCA, 50/60 Hz
Consumed potenceMaximum 5 watts
Mechanical data
Dimensions  (LxWxH)6.69” x 4.33” x 1.46” (170 mm x 110mm x 37mm)
Weight720g (25.40 oz )
Ambient temperature range-40 ̊C a +55 ̊C (-40 ̊ a 131 ̊F)
CoolingNatural convection
Enclosure Protection DegreesIndoor – NEMA 1
Other features
Standard warranty period1 year
CertificationsUL 60950-1 2a edition Rev December 19, 2011
CSA C22.2 2a edition Rev December 19, 2011
FCC Part 15 Class B
AS / NZS 60950.1: 2011 Inc A1
AS/NZS CISPR 22: 2009+A1:2010
EN 60950-1:2006+A11:2009+A1:2010+A12:2011
EN 55022:2010
EN 61000-3-2:2006+A1:2009+A2:2009
EN 61000-3-3:2008
EN 55024:2010
Directive EMC 2004/108 / CE

Do you need more information? Write us!
