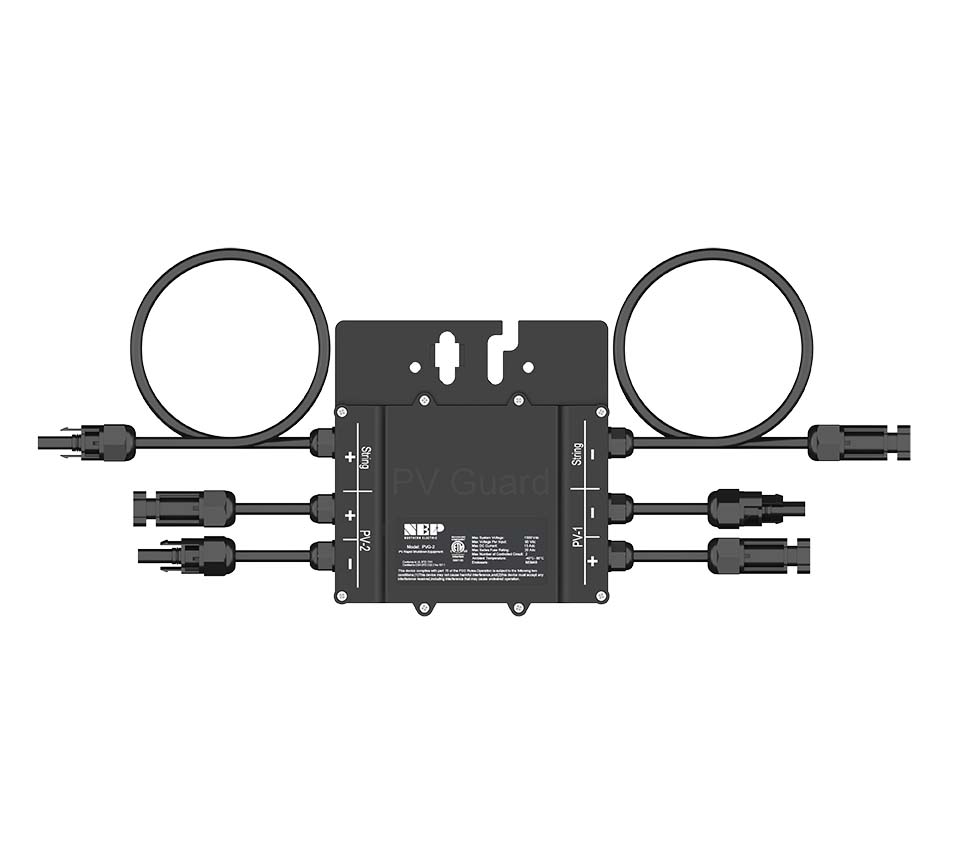

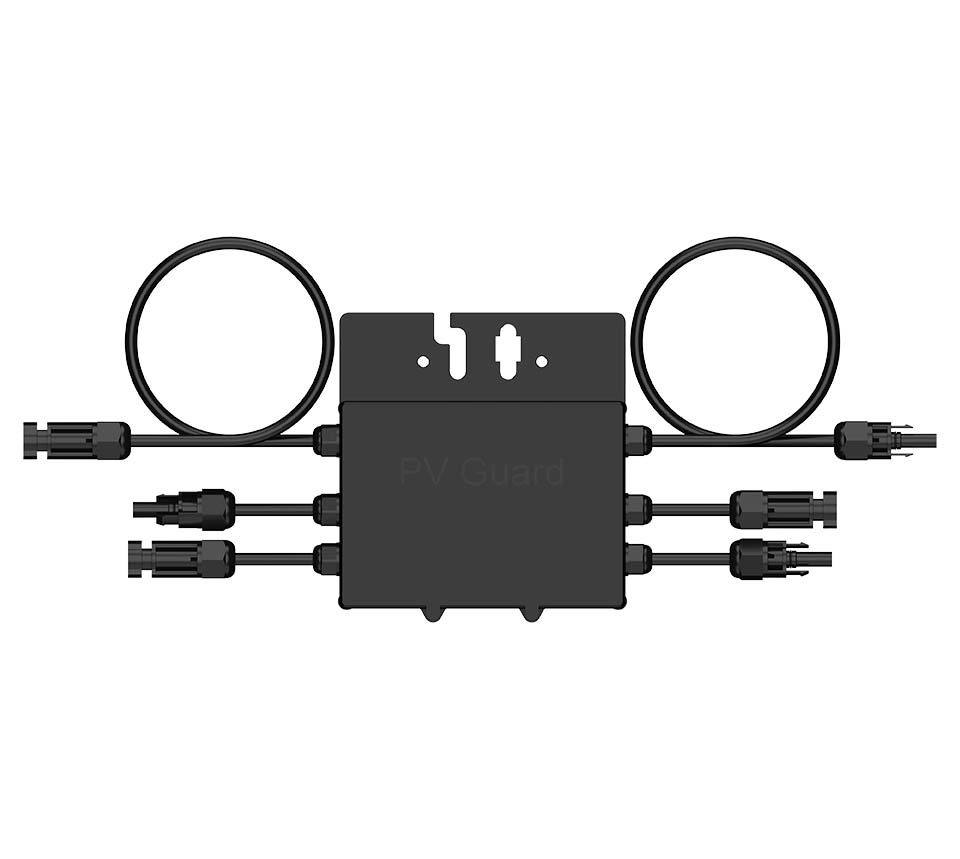

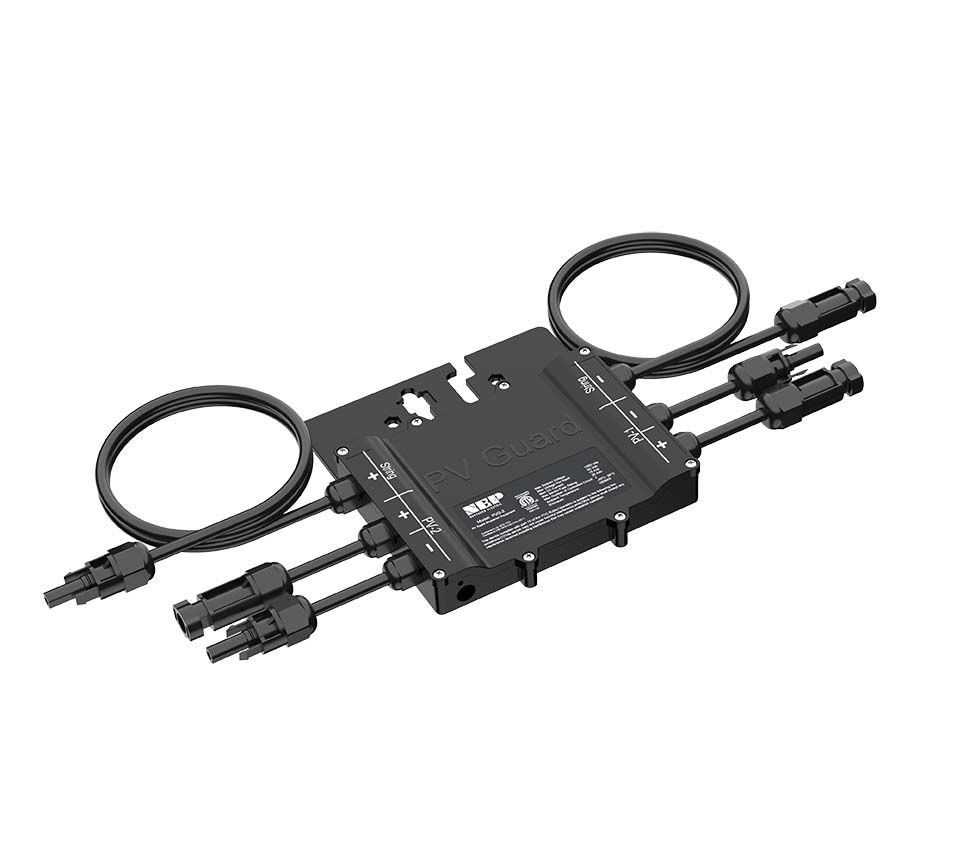

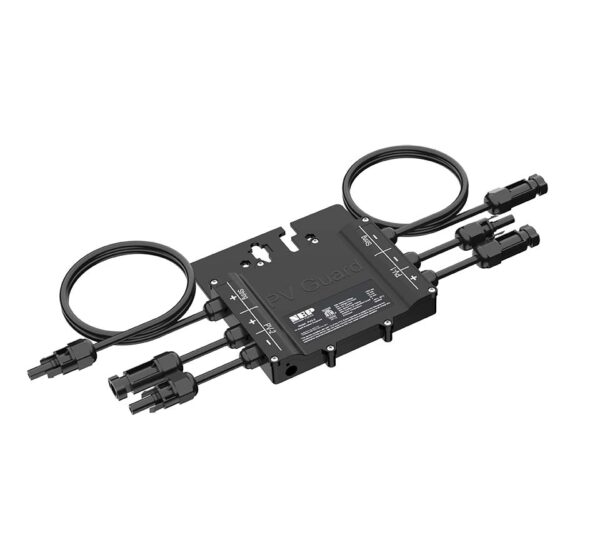

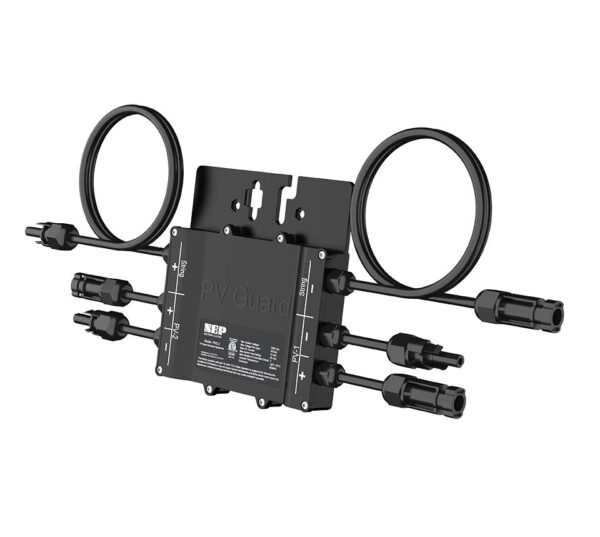

Rapid Shutdown Solutions (RSD) PVG-Guard

Request more information

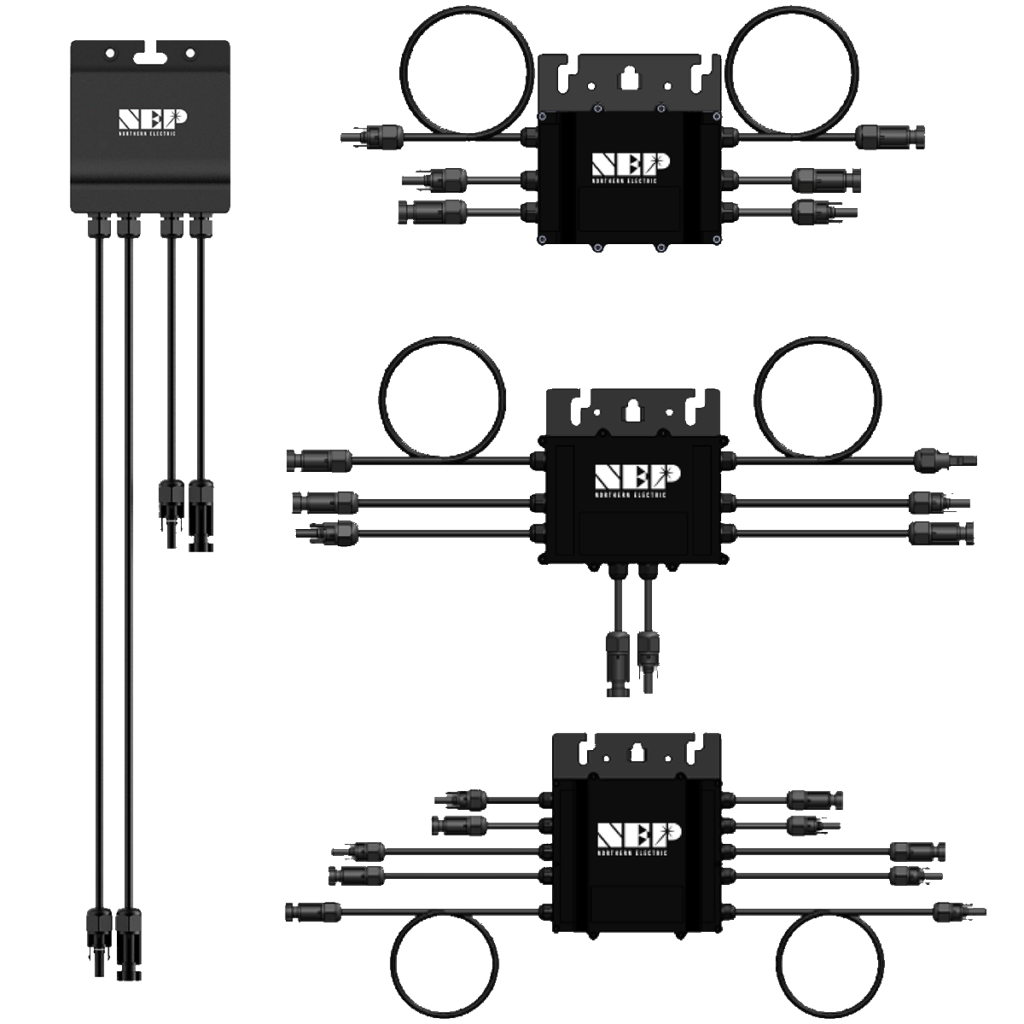

Do you want to know more technical data of the PVG-1, PVG-2, PVG-3 and PVG-4 ?
View downloadable files

Ultra Durable

Ultimate Power Design

Unparalleled Performance

Advanced Thermal Solution

Next Generation Connectivity

slide-rsd1-01
PVG-4-soluciones-de-apagado-rapido-slide4
PVG-4-soluciones-de-apagado-rapido-slide1

Reliability in design simplicity in use

For over a decade, NEP hasworked tireless to develop acost-effective, simple, andreliable RSD+ product that isnow being used in over 25 countries worldwide.

Guaranteed to work

  • PVGs are compatible and functioning right out of the box. This is further backed by our no hassle and immediate RMA process in the unlikely event of failure.
  • The ability to I-V Curve Trace and perform insulation testing allows for immediate testing and commissioning. This way, defective products are discovered immediately and while installation crews are present on site.

Input (DC)
Max DC Open Circuit Voltage per Input (Vdc)90
Max DC Current per input (Adc)15
Output (DC)
Maximum Output Voltage (Vdc)Voc * n (n=1/2/3/4)
System
Maximum System Voltage (Vdc)1500
Mechanics
PV Cable12AWG
PV ConnectorsMc4(Contact NEP for other connectors options)
Size (not including PV cable)

5.12’ x4.73’ x 1.14’ (PVG-1

5.90’ x5.71’ x 1.00’ (PVG-2, PVG-3)

10.5’ x 8.25’ x 1.25’ (PVG-4)

Protection DegreeNEMA 6
Operating Ambient Temperature-40°C–+85°C
Mounting MethodRail, Frame (option)
Signal
CommunicationsDC Power Line
Compatible with SunSpec signaling
Certifications
Product Safety ComplianceUL 1741
CSA C22.2 No. 107.1
NEC 2014/2017 690.12
Canada CEC 2015 64-218

RSD technical documents
