Do you want to know more technical data of the BDM 600-LV Microinverters?
Globalmente certificados

Globally certified (c-ETL-us, 4105, TUV)

NEMA-6, IP-66 and IP-67

V in 60 volts maximum

I max 12 Amps V network

V red 120 Volts AC

Microinversor con GFDI integrado

Integrated GFDI

Integrated monitoring

High efficiency, up to 95.5%

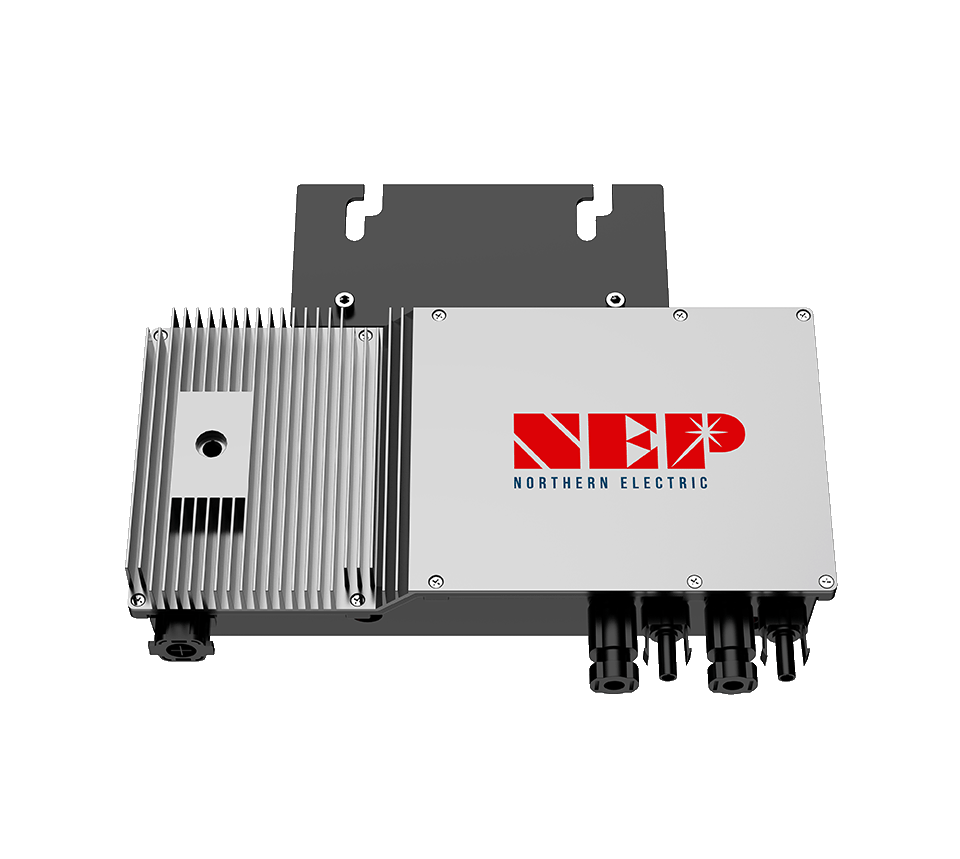

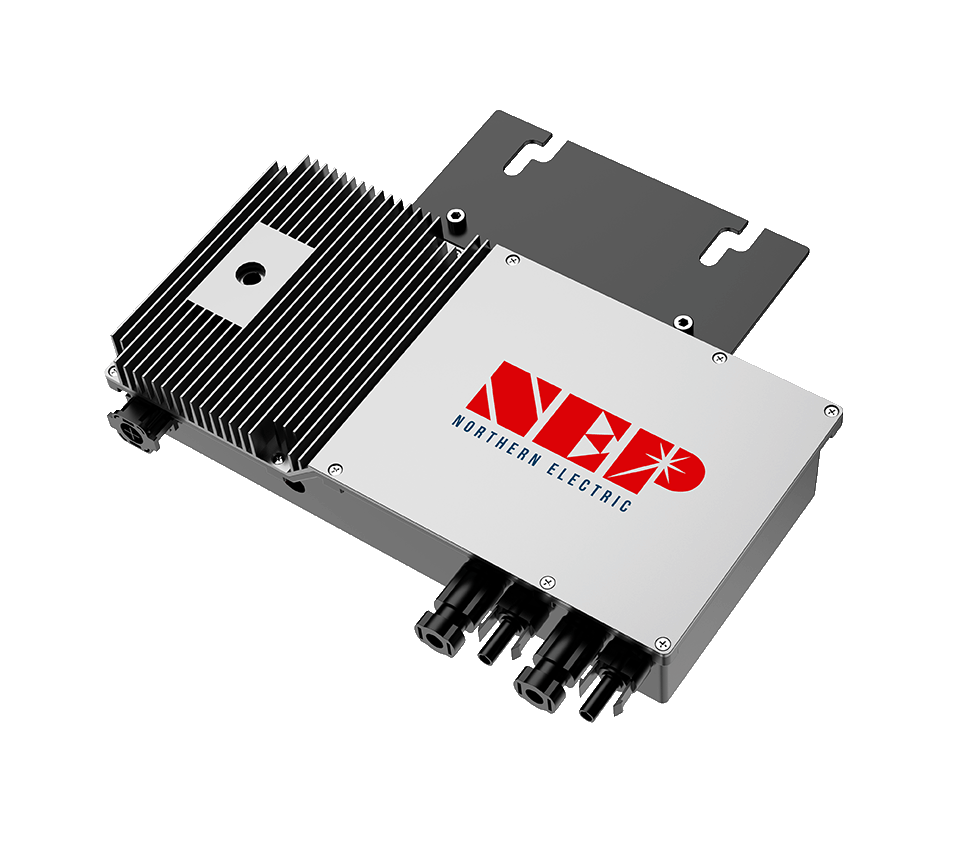

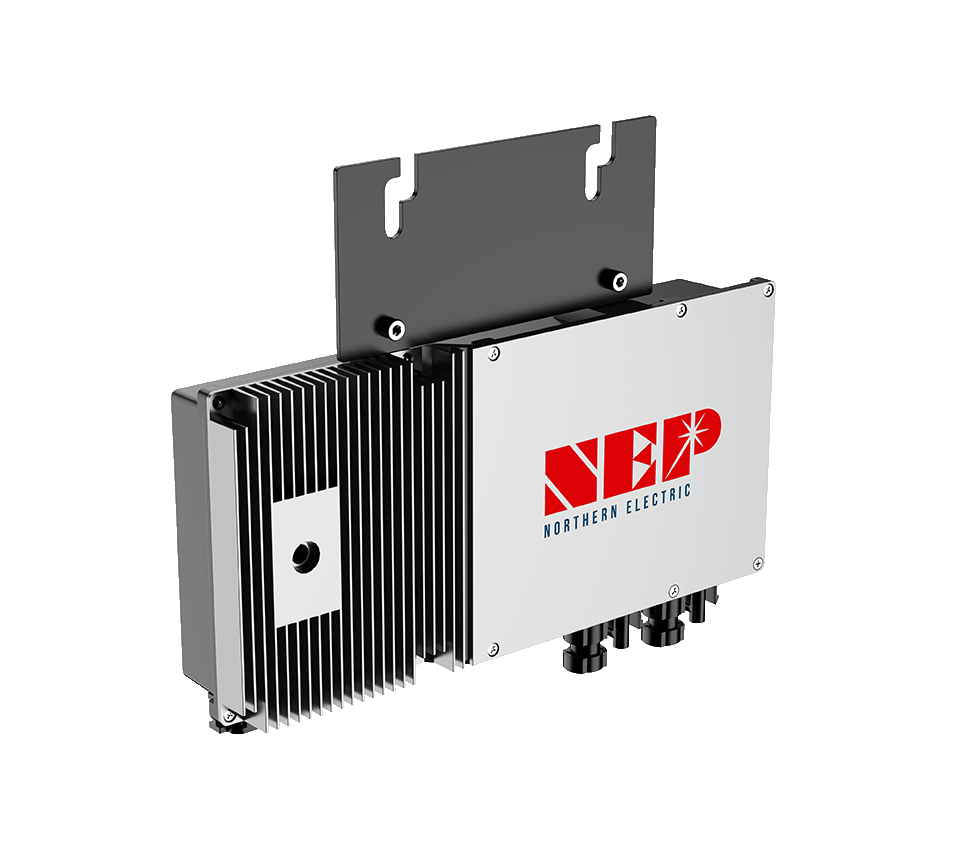

BDM 600-LV Microinverter

The BDM 600-LV solar microinverter is designed to support up to two 360W high power panels. Additionally, it features integrated ground (IG) that eliminates the need for grounding conductor (GEC) on the DC side. The unique design of the BDM 600-LV model, in addition to being functional, it is unique and original, available only with NEP.

International certificates

Globally certified for UL1741, SAA, TUV, VDE-AR-N 4105, VDE 0126, G83/2, CEI 021, IEC61727, EN50438 Protection classIP66, IP67, NEMA 6 high efficiency with 95.5% maximum.

Simple and practical design

Dimensions: 277 × 132 × 50 mm Weight of 4 Kg Operating temperature of -40 ~ + 85 ℃ Natural convection cooling system.

Simple installation

Very simple installation with built-in cables and connectors. Integrated monitoring and power line communication with integrated BDG-256 GFDI gateway. Integrated 14 AWG AC cables.

NEP Microinverters

NEP microinverters convert the current generated by the photovoltaic modules (DC) intoalternative current (AC) to deliver it to the electrical grid system. They come with a 10-year warranty and with them you save money on your electricity bill and contribute to a cleaner future.

Dimensions: 10.91´x5.20´x1.97´

Weight:  8.8 Ibs

ModelBDM 600-LV
Input DC
Recommended Max PV Power (Wp)385 x 2
Recommended Max DC Open Circuit Voltage (Vdc)60
Max DC Input Current (Adc)12 x 2
MPPT Tracking Accuracy>99.5%
MPPT Tracking Range (Vdc)22-55
Isc PV (absolute maximum) (Adc)14 x 2
Maximum Inverter Backfeed Current to the Array
(Adc)
0
Output AC
Peak AC Output Power (Wp)550
Rated AC Output Power (Wp)500
Nominal Power Grid Voltage (Vac)127
Allowable Power Grid Voltage (Vac)100-140*
Allowable Power Grid Frequency (Hz)59.3 a 60.5*
THD<3% (at rated power)
Power Factor (cos phi, fixed)>0.99
Rated Output Current (Aac)3.93
Current (inrush)(Peak and Duration)24A, 15us
Nominal Frequency (Hz)60
Maximum Output Fault Current (Aac)8.8A peak
Maximum Output Overcurrent Protection (Aac)20
Maximum Number of Units Per Branch (20A)
(All NEC adjustment factors have been considered)
4
Syistem efficiency
Weighted Averaged Efficiency (CEC)95.50%
Night Time Tare Loss (Wp0.11
Protection functions
Over/Under Voltage ProtectionYes
Over/Under Frequency ProtectionYes
Anti-Islanding ProtectionYes
Over Current ProtectionYes
Reverse DC Polarity ProtectionYes
Overload ProtectionYes
Protection DegreeNEMA-6 / IP-66 / IP-67
Ambient Temperature-40°F to +149°F (-40°C to +65°C)
Operating Temperature-40°F to +185°F (-40°C to +85°C)
DisplayLED LIGHT
CmmunicationsPower Line
Dimension (W-H-D)10.91´x 5.20´x 1.97´
Weight8.8 Ibs
Environment Category Indoor and outdoor
Wet LocationSuitable
Pollution DegreePD 3
Overvoltage CategoryII(PV), III (AC MAINS)
Product Safety Compliance

California Rule 21 Certified UL 1741
CSA C22.2
No. 107.1 /

IEC/EN 62109-1
IEC/EN 62109-2

Grid Code Compliance* (Refer to the label for the
detailed grid code comliance)

IEEE 1547

VDE-AR-N 4105*
VDE V 0126-1-1/A1
G83/2, CEI 021
AS 4777.2 & AS
4777.3,EN50438
